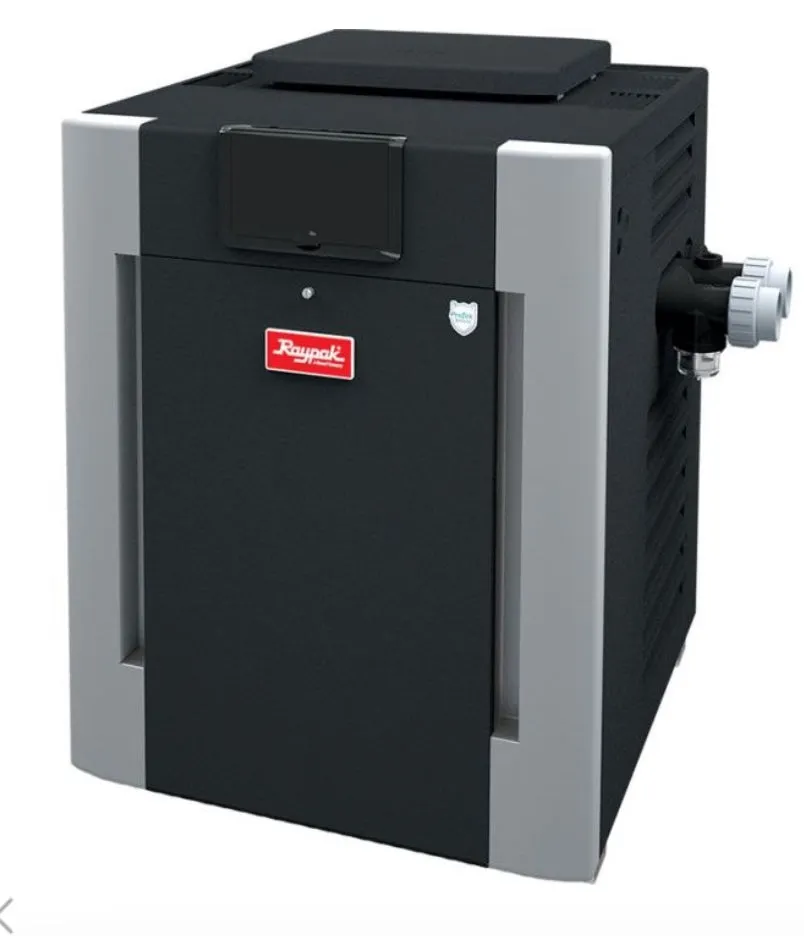

Ruud Raypak #26 Natural Gas Low NOx Digital Heater 399K BTU

The Ruud P-D337A Natural Gas Low NOx Digital Heater meets or exceeds all federal and state standards with Ruud's energy-smart heaters consistently achieve the highest efficiency ratings. It is so thoughtfully and carefully designed it actually protects itself from the things that tend to stifle ordinary pool and spa heaters. It delivers uninterrupted heating performance regardless of falling leaves, wind, airborne debris, rain, downdrafts.

Specifications

• ItemShipping Dimensions: 38 x 34 x 30 inch
• Cabinet Depth: 28 inch
• Cabinet Height: 31.8125 inch
• Cabinet Width: 29 inch
• Channel: Pool Equipmenrt
• Commercial, Residential, or Professional: Commercial, Residential
• Control Type: Digital Electronic
• Each Product Weight: 238 pound
• Flow Rate Max: 125 gal/min
• Flow Rate Min: 125 gal/min
• Frequency Rating (Hz): 60
• Fuel Type: Natural Gas
• Green or Energy Efficient Product: True
• Standards Approvals: ASME Certified
• Voltage: 115V, 230V
• BTU Input: 399000 British thermal unit
• Burner Orifice Size: #26
• Elevation Max: 5000 foot
• Elevation Min: 0 foot
• Flue Diameter: 9 inch
• Gas Connection: 0.75 inch
• Gas Connection FIT: NPT
• Header Material: Polymer
• High Altitude Model: False
• Indoor Drafthood: 58.5 inch
• Minimum J: 12.5 inch

What's in the Box

1 x Ruud Raypak #26 Natural Gas Low NOx Digital Heater 399K BTU
1 x User Manual
