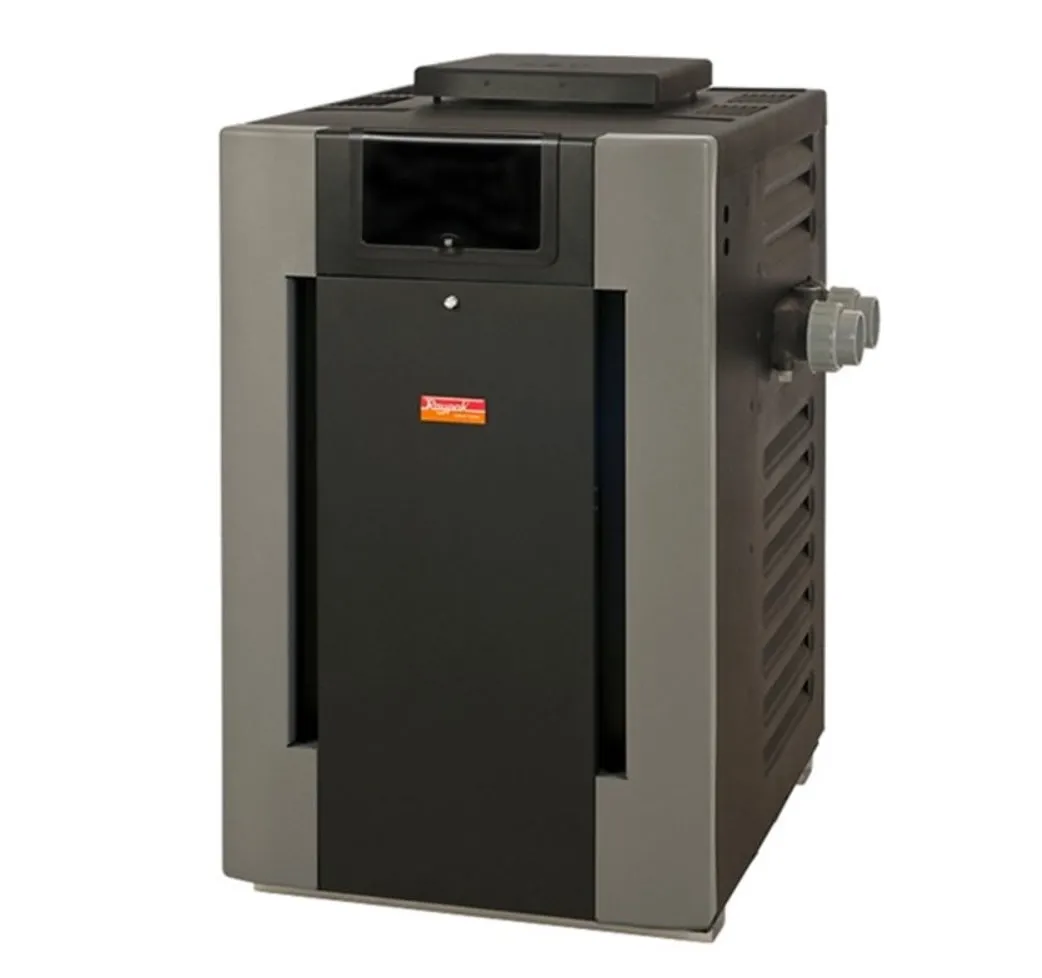

Ruud Raypak #50 Natural Gas Digital Polymer Heater 199K BTU

The Ruud P-D206A Natural Gas Digital Polymer Heater meets or exceeds all federal and state standards with Ruud's energy-smart heaters consistently achieve the highest efficiency ratings. The ProTek Shield is a cutting-edge module that protects the heat exchanger and extends the life of your Digital Gas Pool and Spa Heater. Rest, soak or swim knowing that your pool heater investment can be enjoyed even longer thanks to this innovative, patent-pending technology.

Specifications

• Cabinet Depth28 inch
• Cabinet Height38 inch
• Cabinet Width20 inch
• ChannelPool Equipmenrt
• Commercial, Residential, or ProfessionalResidential
• Control TypeDigital Electronic
• Each Product Weight191 pound
• Flow Rate Max125 gal/min
• Flow Rate Min125 gal/min
• Frequency Rating (Hz)60
• Fuel TypeNatural Gas
• Voltage115V, 230V
• BTU Input199500 British thermal unit
• Burner Orifice Size#50
• Elevation Max2000 foot
• Elevation Min0 foot
• Flue Diameter6 inch
• Gas Connection0.75 inch
• Gas Connection FITNPT
• Header MaterialPolymer
• High Altitude ModelFalse
• Indoor Drafthood61.625 inch
• Minimum J11.875 inch
• Stackless Outdoor Top40 inch

What's in the Box

1 x Ruud Raypak #50 Natural Gas Digital Polymer Heater 199K BTU
1 x User Manual
