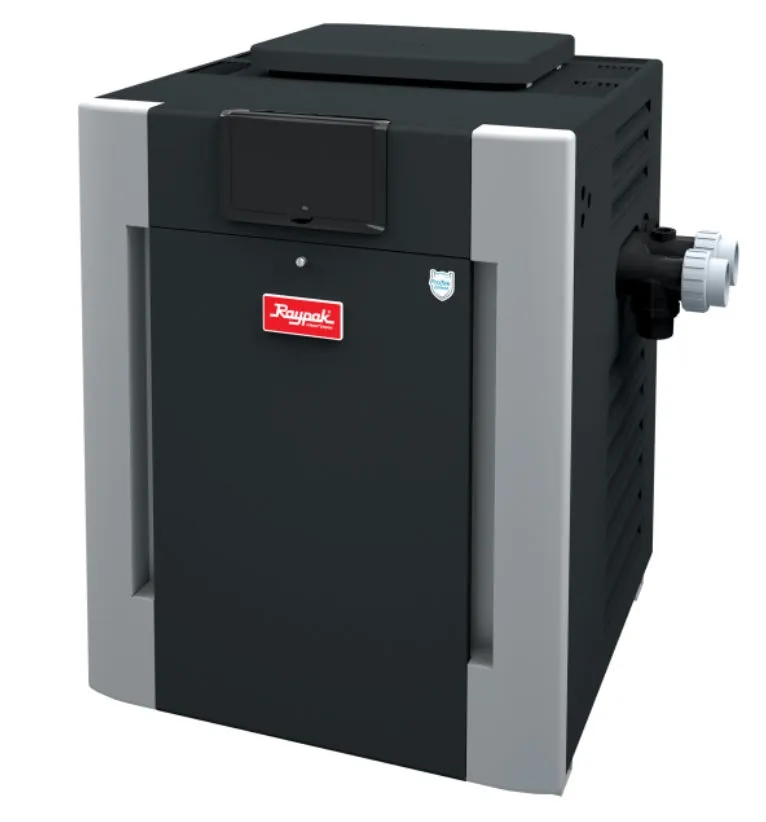

Ruud Raypak #51 Natural Gas Digital Heater 240K BTU

The Ruud natural gas heater is designed for the highest level of performance, and made quality-made parts at every level. The heater features protective measures against all types of damaging factors including weather, environmental factors and temperature. The stainless steel and aluminum protect heat-sensitive areas, while cutting edge technology ensures that water is heated to your specific preferences.

Specifications

• ItemShippingDimensions: 44 x 30 x 28 inch
• Cabinet Depth: 28 inch
• Cabinet Height: 38 inch
• Cabinet Width: 23 inch
• Channel: Pool Equipmenrt
• Commercial, Residential, or Professional: Commercial, Residential
• Control Type: Digital Electronic
• Each Product Weight: 248 pound
• Flow Rate Max: 125 gal/min
• Flow Rate Min: 125 gal/min
• Frequency Rating (Hz): 60
• Fuel Type: Natural Gas
• Green or Energy Efficient Product: True
• Standards Approvals: ASME Certified
• Voltage: 115V, 230V
• BTU Input: 266000 British thermal unit
• Burner Orifice Size: #51
• Elevation Max: 6000 foot
• Elevation Min: 2000 foot
• Flue Diameter: 7 inch
• Gas Connection: 0.75 inch
• Gas Connection FIT: NPT
• Header Material: Polymer
• High Altitude Model: True
• Indoor Drafthood: 62 inch
• Minimum J: 11 inch
• Stackless Outdoor Top: 40 inch
• Tubing Material: Cupro Nickel

What's in the Box

1 x Ruud Raypak #51 Natural Gas Digital Heater 240K BTU
1 x User Manual
